is an integral part of overall building design, as it can contribute to the aesthetics, comfort and performance of any facade. Obtaining the best performance in these aspects depend on good design, proper construction practices and correct installation. ALUMATE CLADDING is an integral part of overall building design, as it can contribute to the aesthetics, comfort and performance of any facade. Obtaining the best performance in these aspects depend on good design, proper construction practices and correct installation. ALUMATE CLADDING

Design requirements for cladding in buildings are generally the same regardless of the cladding material used, ongoing maintenance and fire performance are currently and will continue to prove as important considerations.

ALUMATE - ALUMINIUM CLADDING

Alumate architectural cladding system enhances the look and feel of any outdoor façade, soffit and internal wall & ceiling linings. Alumate is Ideal for any new buildings or renovations and is suitable for both residential and commercial applications where low maintenance, durable, non-combustible realistic wood grain finish is required.

Alumate cladding comes in varying widths and offers straight forward fixing methods making it highly flexible for any design specification and application. Featuring an interlocking tongue and groove design to achieve concealed fixings while providing a conventional timber appearance with a clean and durable finish, Alumate cladding can be orientated either vertically or horizontally in order to deliver a clean finish with consistently spaced shadow / join lines.

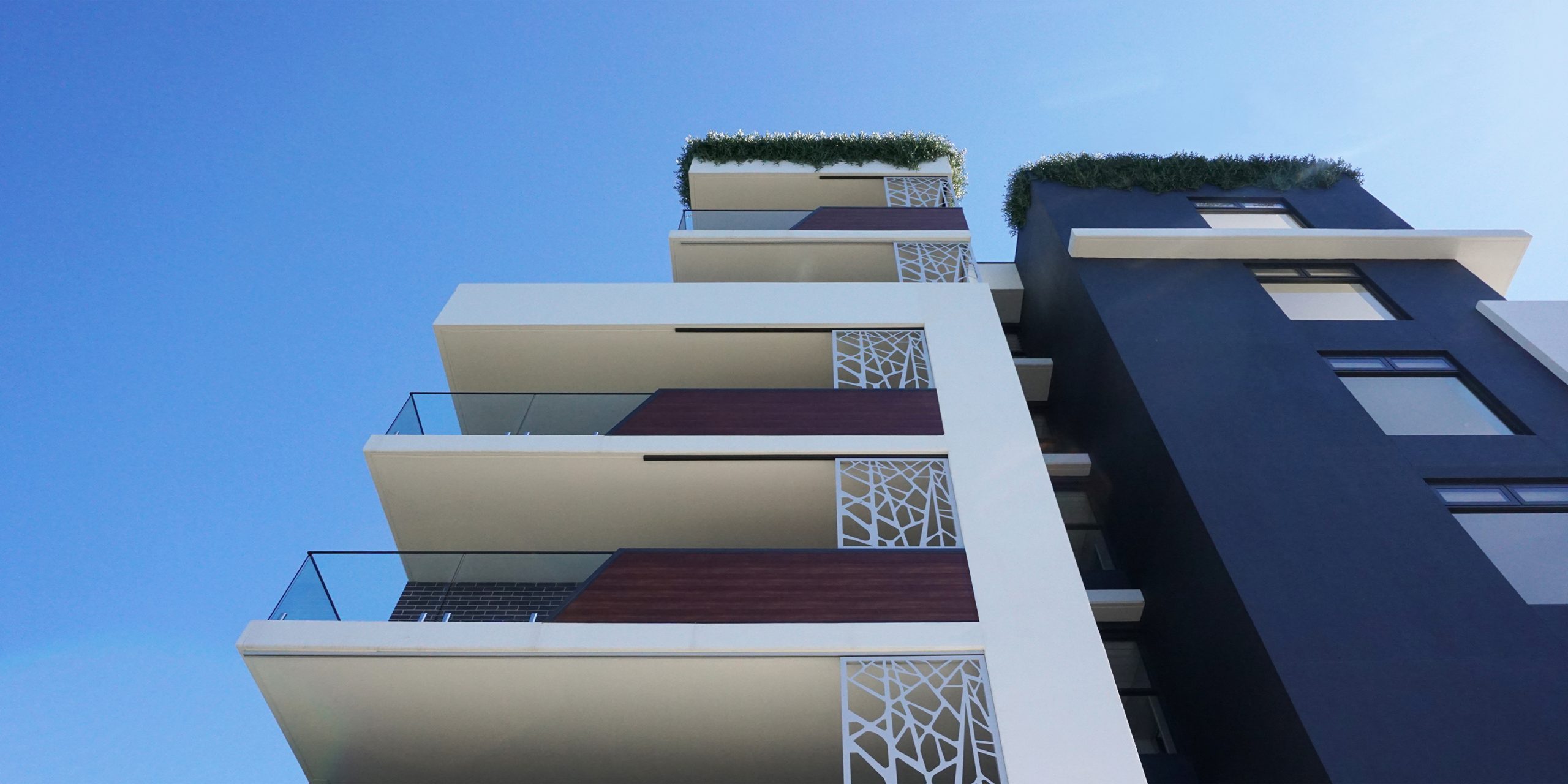

Project - Prime Macquarie Park

Advantages

  • Non-Combustible
  • Low maintenance
  • Durable
  • Easy installation with Pre-slotted fixing points
  • All sizes of cladding profiles interlock with each other
  • Profile Coverage(1):165mm
    Visual Board Coverage: 83mm or 165mm
  • Profile Coverage(2):150mm
    Visual Board Coverage:150mm
  • Wide range of realistic wood grain finishes
  • Vertical and horizontal installation options
  • Full suite of accessories in matching profile colours

ALC16515V

ALC16515

ALC15030

NON-COMBUSTIBLE

Alumate Aluminium Cladding has been tested and certified to AS1530.1 as a Non-Combustible material.

Specifications

  • Grade 6063-T5 Aluminium extrusion profiles and accessories
  • Decoral Aluminium heat transfer surface finishing
  • Certified AS 1530.1-1994 Compliant – Non-Combustible
  • Density 2712 kg/m³
  • Ultimate Tensile Strength 140 MPa
  • Yield Strength 97 MPa
  • Young’s Modulus 69 GPa
  • Melting Temperature 615°C
  • Thermal Conductivity 201-218 W/m°K

Decoral - Italian Timber Finishes

Alumate cladding combines aluminium extrusions with the latest Italian decorative heat transfer surface finishing process technology. The result is in a low maintenance cladding that exhibits excellent strength and durability whilst maintaining the most realistic aesthetically pleasing alternative to natural timber

The patented Decoral system transfers the colour and appearance of wood grain onto the surface of the aluminium profiles. This system is compliant to worldwide finishing quality labels making it the superior choice for architectural cladding.

* PLEASE BEAR IN MIND THAT COLOURS MAY APPEAR SLIGHTLY DIFFERENT ON DELIVERY DUE TO DIFFERENT PRINTER AND MONITOR SETTING.
