PREMIUM FIBA-DEK DECKING

The Premium FIBA-DEK System is a revolutionary composite product that is combined with the
Kingfa Sci. and Tech. Co. Ltd. patented fibre technology to fuse two fibreglass layers during the production process, within a co-extruded wood composite product.

FIBA-DEK - NEW TECHNOLOGY PREMIUM DECKING

Premium FIBA-DEK with Smart-Clip Fixing System utilises hidden connectors slotted into grooves along the sides of the decking board profile which are fixed down to joists or battens. The system provides a clean hidden fixing surface. This patented technology enhances the rigidity, durability and toughness of the decking board to achieve better performance by significantly minimising the board movement at different temperature.

NEW TECHNOLOGY FOR BETTER PERFORMANCE

The graph below illustrates the thermal movement of Premium FIBA-DEK. These performance figures were generated from our factory testing results and show the superior minimal thermal movement of Premium FIBA-DEK. The results shown below might slightly vary depending on the external conditions.

PROFILES

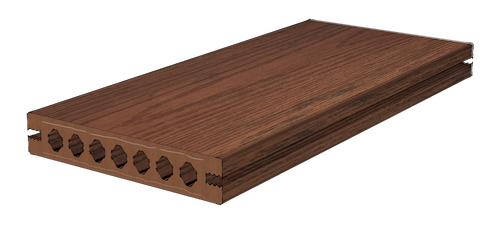

  • Product Code: DB14025
  • Coverage: 140mm
  • Max Span: Commercial – 350mm, Residential – 400mm
  • Standard Length: 4500mm
  • Thickness: 25mm

BUTT JOINTS & FASCIAS

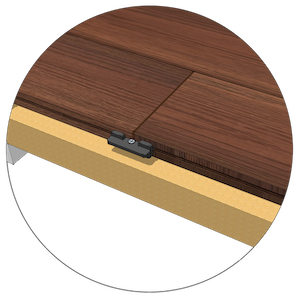

Butt joints must always be blocked out underneath with a 190 x 45mm timber block and be fixed of with connectors as shown above.

For any 90º fascia corners, it is best to use the fascia trim as shown in Fig above.

APPLICATIONS & BENEFITS

APPLICATIONS
  • Residential Applications
  • Commercial Applications
  • Health & Aged Care Facilities
  • Educational Institutions
  • Retail & Shopping Centres
  • Public Spaces
BENEFITS
  • Quick & Easy to Install
  • Safe – no nail and splinter free
  • Clean fixing free surface Finish
  • Long lasting

COLOURS & FINISHES

Colour Options – Cedar, Alder, Cinnamon & Charcoal
Surface Finish Options – Embossed wood grain

* Please bear in mind that colours may appear slightly different on delivery due to the lighting during photo shoot or different monitor settings.

Download installtion manual

Download installtion manual
