Why ALLFACE Smart Fixing System?

Allface provides know-how in the development, engineering and manufacturing of fixing solutions to meet customer’s expectations of providing the best possible performance.
Allface offers the full spectrum, ranging from individual components to complete systems in conjunction with the experience from their skilled technical team.
The superb quality of Allface is not only reflected in the superior quality of their products, manufacturing capabilities and reliability of delivery schedules but also in the wide range of services it provides.

Visible Fixing

Visible fixing attachment systems can be applied using either rivets or anchoring clips.

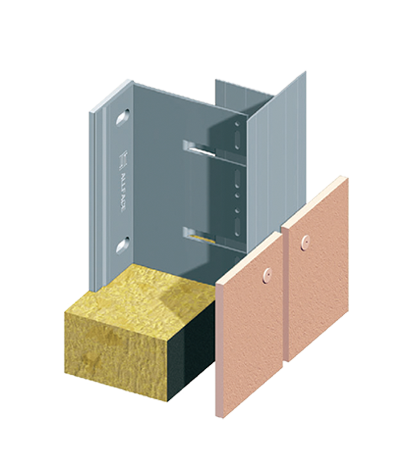

Rivets – enable the fast and permanent installation of facade cladding.

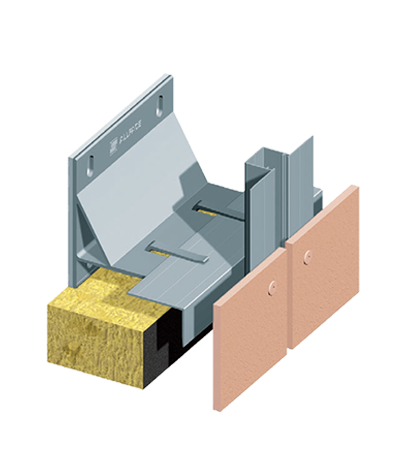

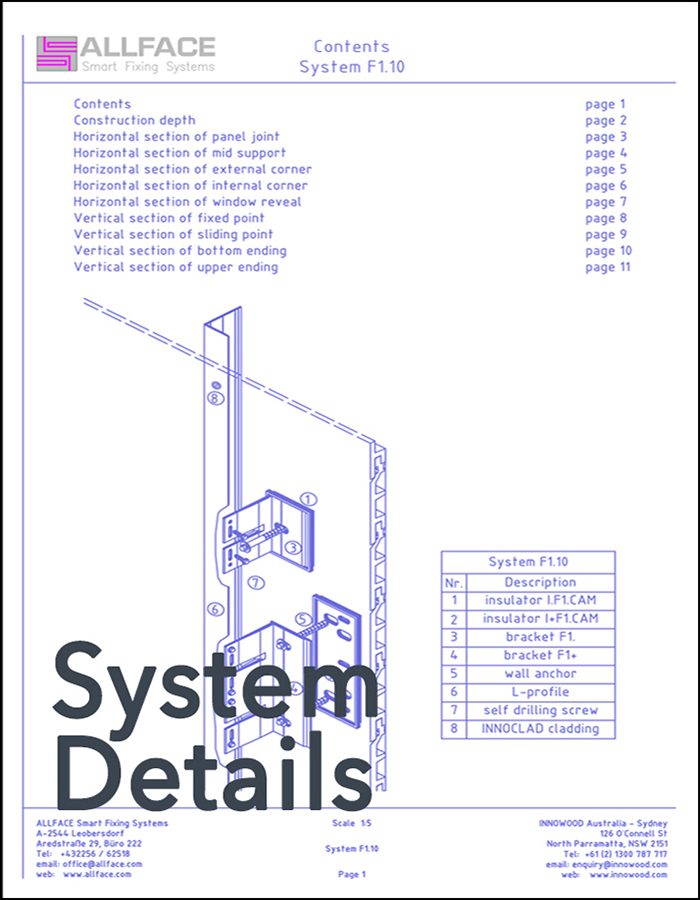

Rivets
(System F1.10)

Rivets
(System F2.10)

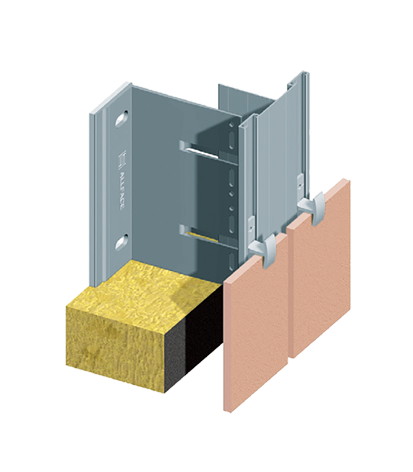

Anchoring clips
(System F1.20)

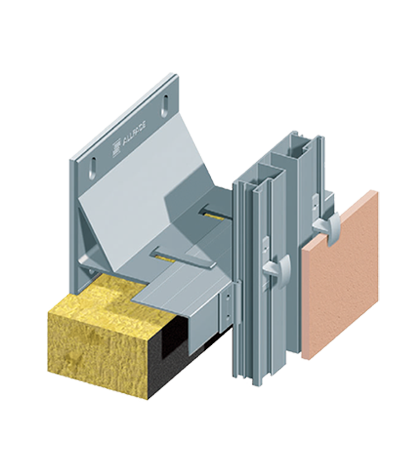

Anchoring clips
(System F2.20)

Concealed Fixing

Concealed fixing attachment systems include mechanically undercut anchors, structural bonding and mounting facade cladding elements.

Undercut anchors – The back of the cladding elements are affixed with cleats with special bolts that are inserted into the undercut hole and fixed by tightening the screws. Each cladding element must be fastened with at least four individual anchors.

Structural bonding - is an economical, concealed and ‘installer friendly’ method of installing facade cladding. The cladding is attached to the adequately pre-treated supporting rails by using a permanently elastic adhesive and a double-sided adhesive installation tape.

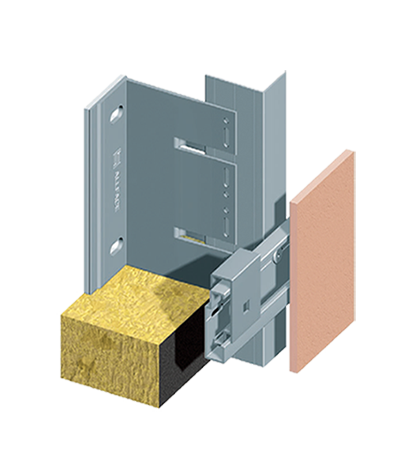

Undercut anchors
(System F3.40)

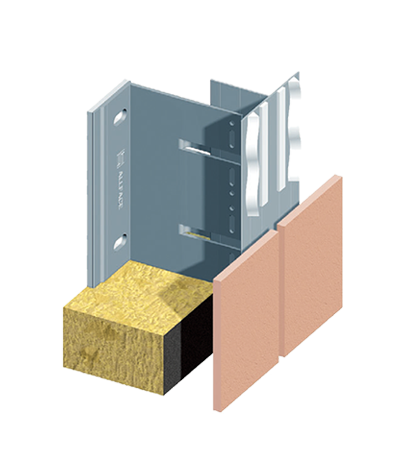

Structural bonding
(System F1.30)

Structural bonding
(System F2.30)

System Specification

FEATURES
ALLFACE facade System can create a great variety of design possibilities for architects and designers.

> Allface systems can create innovative solutions for complex facade designs.
> Allface products contribute to making all types of facades safe, high-quality, and as economical as possible.

APPLICATIONS
ALLFACE systems are available for the following facade applications:

> Fibre Cement
> Natural stone
> Glass , Glass fibre reinforced concrete
> Terracotta
> Aluminium Composite Material (ACM)
> High Pressure
> Ceramic Laminate
